Overview

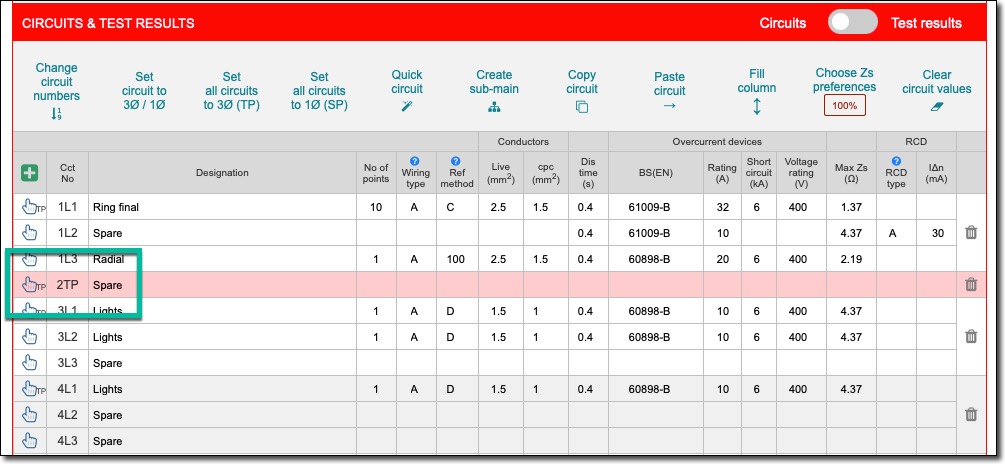

Once a board has been defined as three-phase, you can make circuits triple-pole or TP.
Choose the circuit

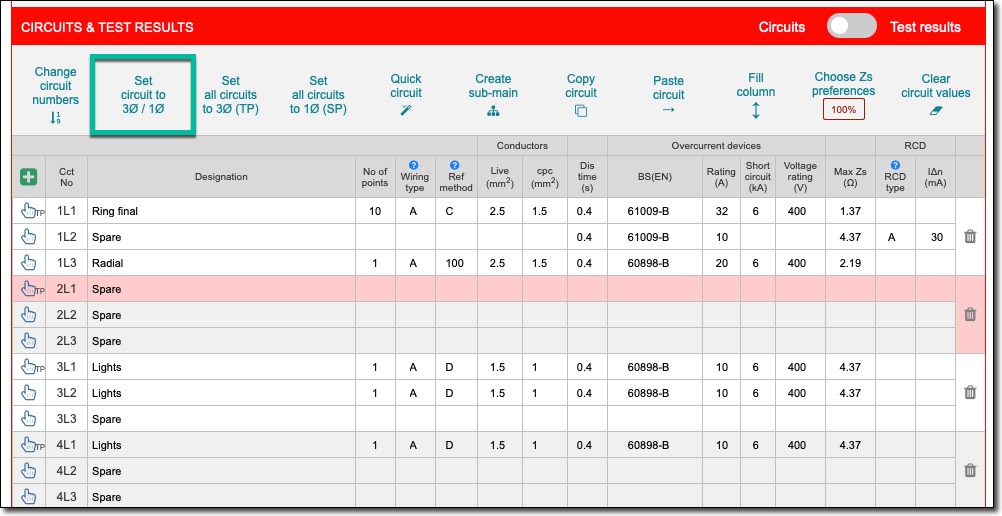

Click the hand next to the circuit, the row will turn pink. Then click the Set circuit to 3Ø/1Ø button.
Modified on: Wed, 12 May, 2021 at 10:07 AM
Once a board has been defined as three-phase, you can make circuits triple-pole or TP.
Click the hand next to the circuit, the row will turn pink. Then click the Set circuit to 3Ø/1Ø button.
