Overview

When you add a new board, you can decide whether the circuits are single phase or three phase


Define the phase arrangement

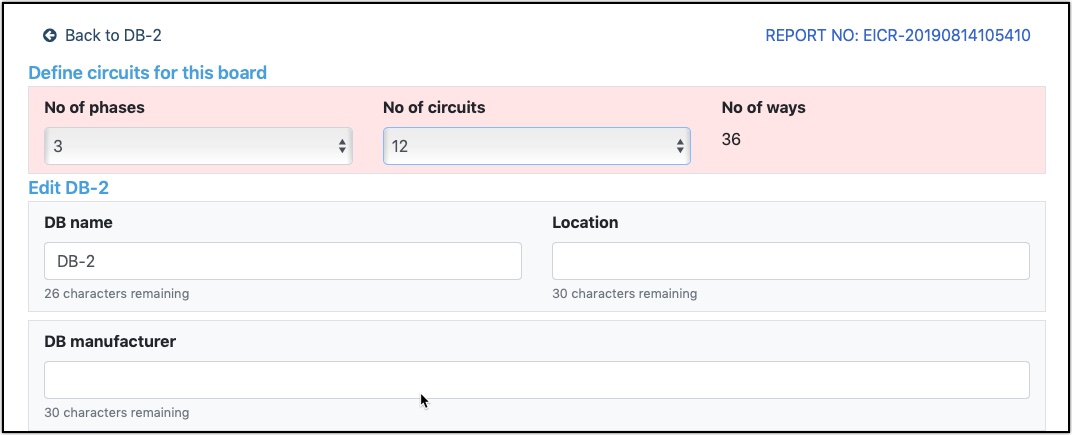

Click the Edit board button - now you can decide how many phases this board has - and how many circuits. In this instance, this would create a 12 way 3 phase board, resulting in 36 ways being available.

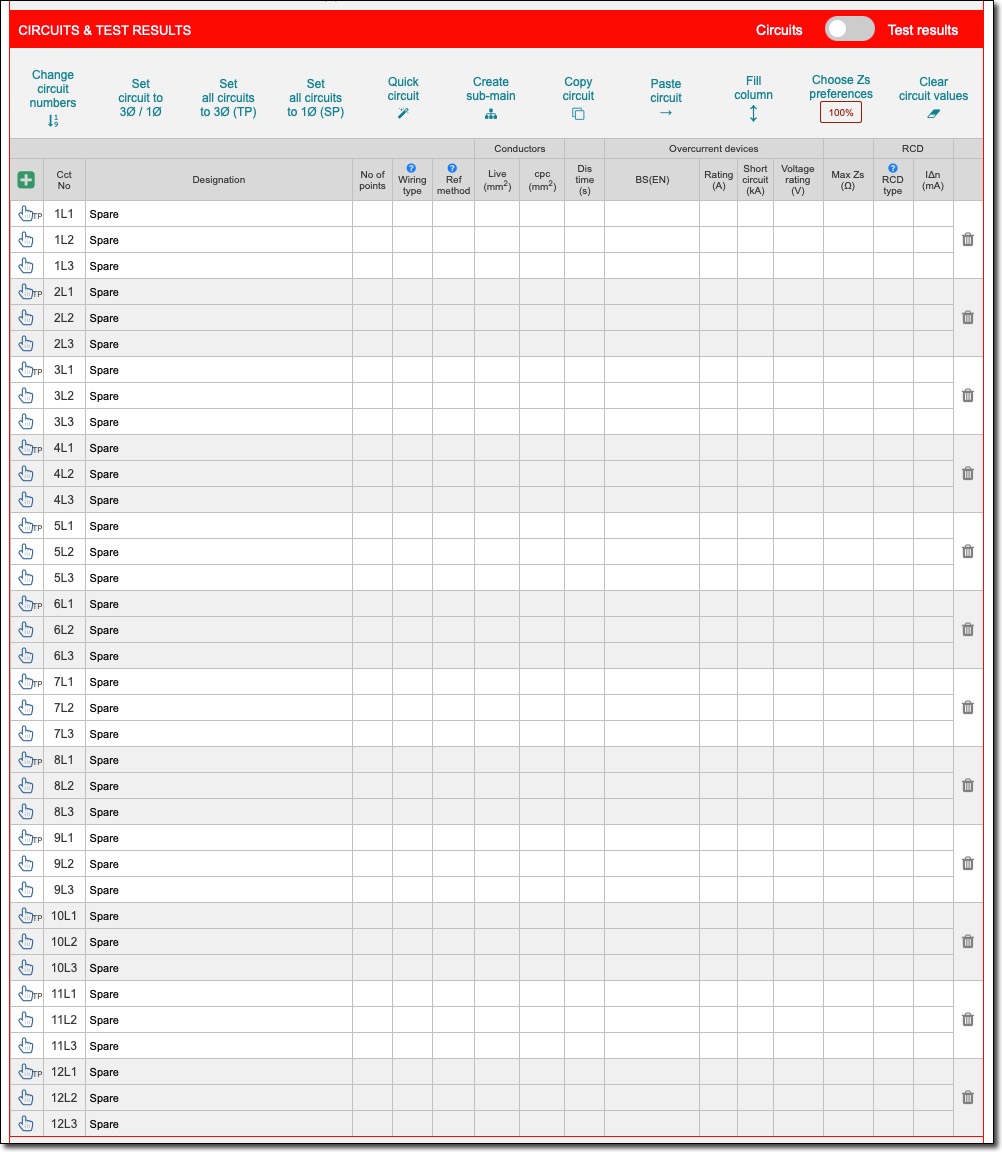

Click the Update board button and the circuits would look like this:
