A number of changes occurred in the EICR including the following:
Installation page

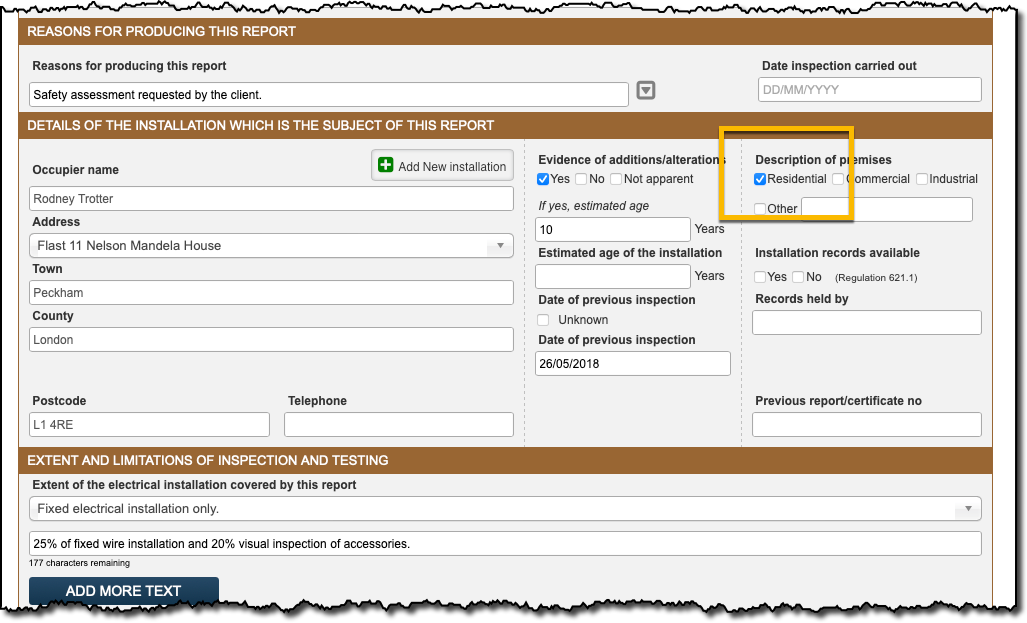

On the installation details page the term Domestic has been replaced with Residential
Observations

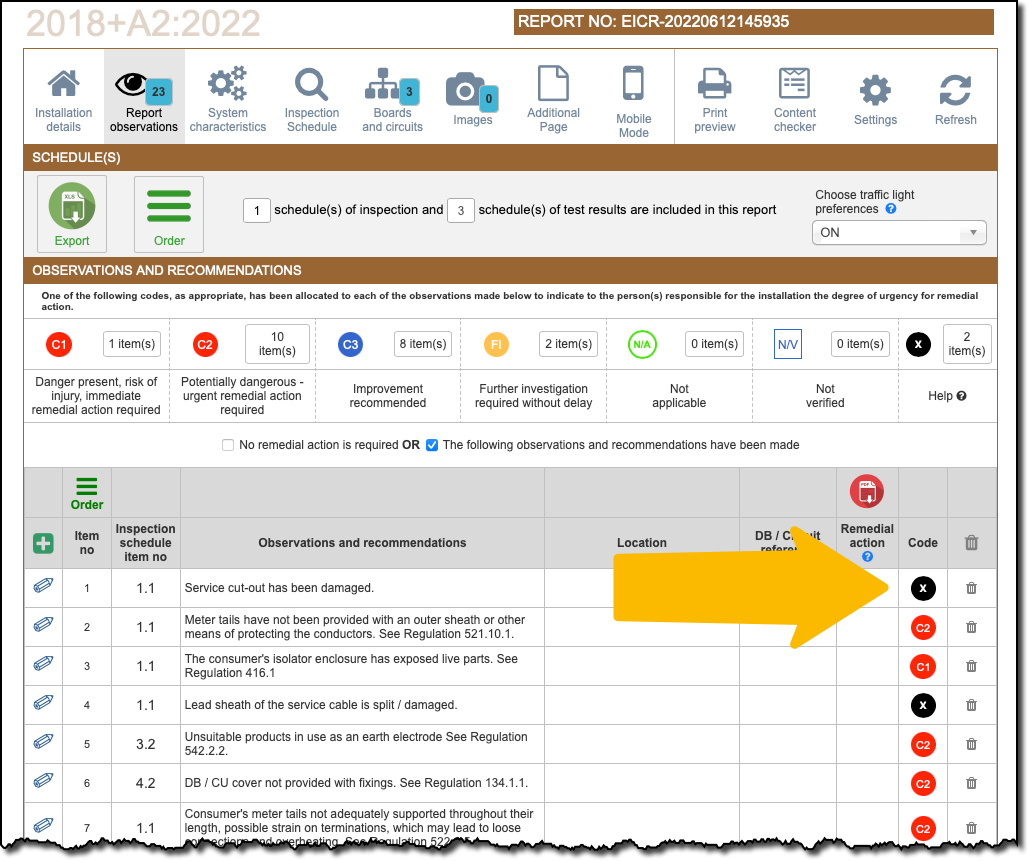

On the observations page a new code has been introduced for intake equipment where an X can be used. The advice is "An outcome against an item in this section, other than access to live parts should NOT be used to determine the overall outcome of the report"

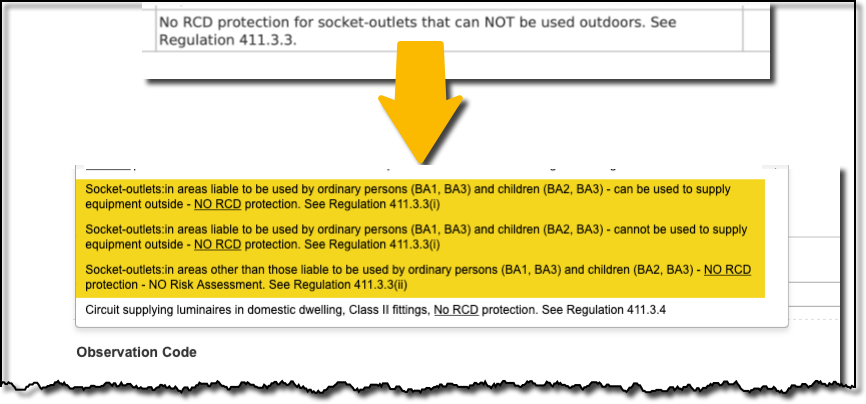

Many of the pre-written observations have been re-worded.An example of this is displayed below. When searching try to use keywords to enhance your search
Inspection schedule

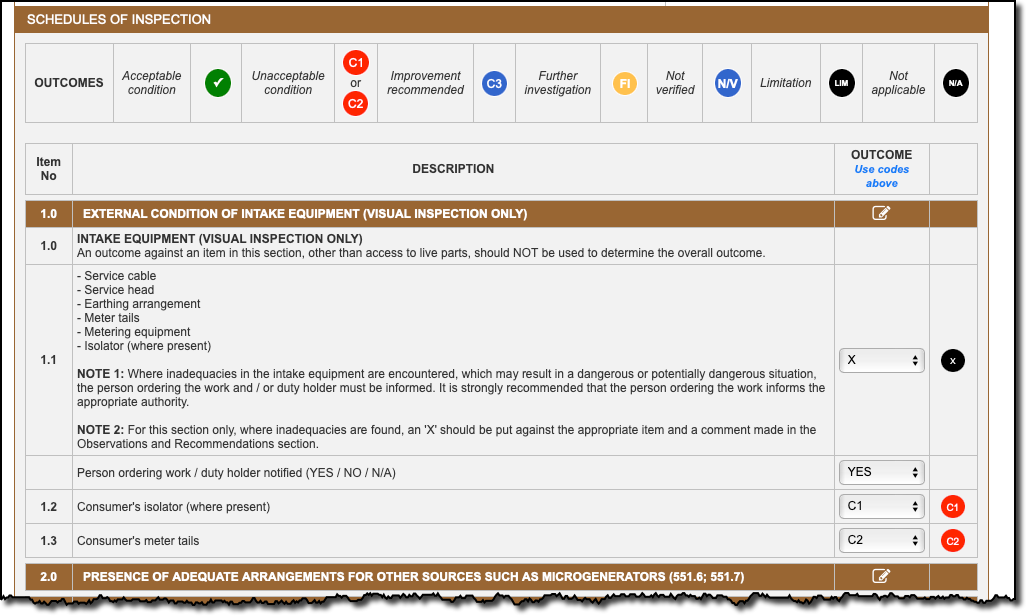

Section 1 of the inspection schedule has been reduced to 3 items and the X classification should also be used where appropriate

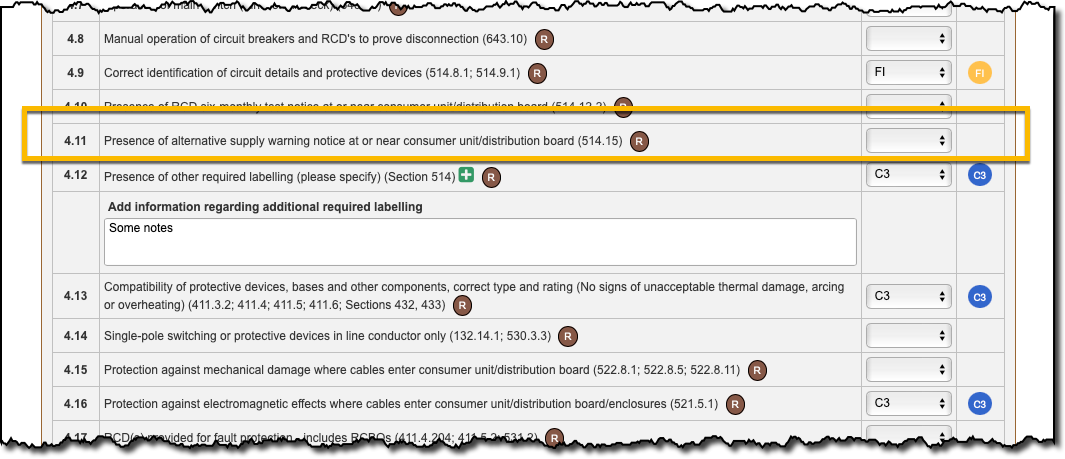

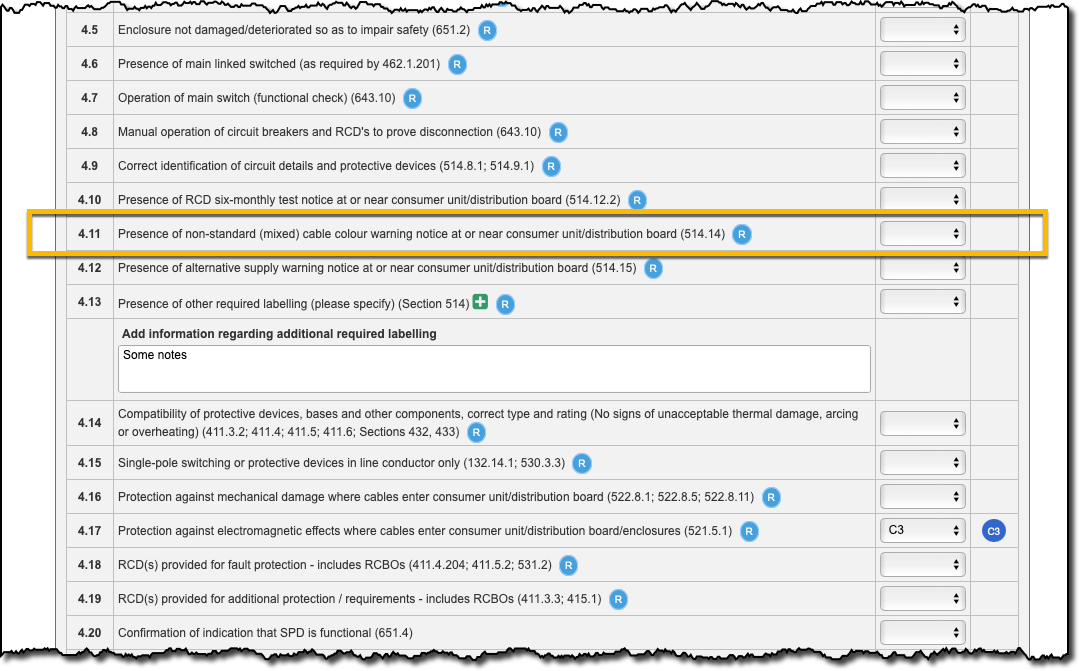

Section 4.0 item 4.11 has been removed and used to read:
Item 4.11 now reads:
Due to these changes it has not been possible to copy Amendment 1 outcomes to Amendment 2 outcomes.

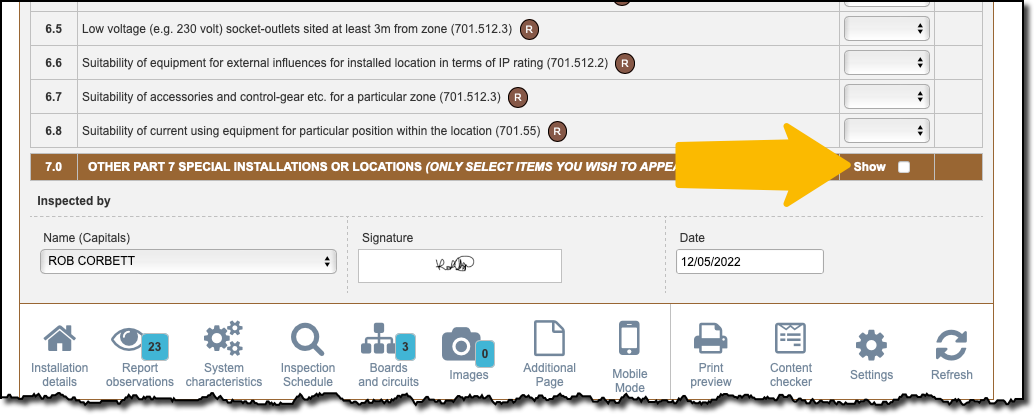

Section 7 - We have included all of the special installation-locations in the updated inspection schedule. You reveal this section by clicking the Show button:

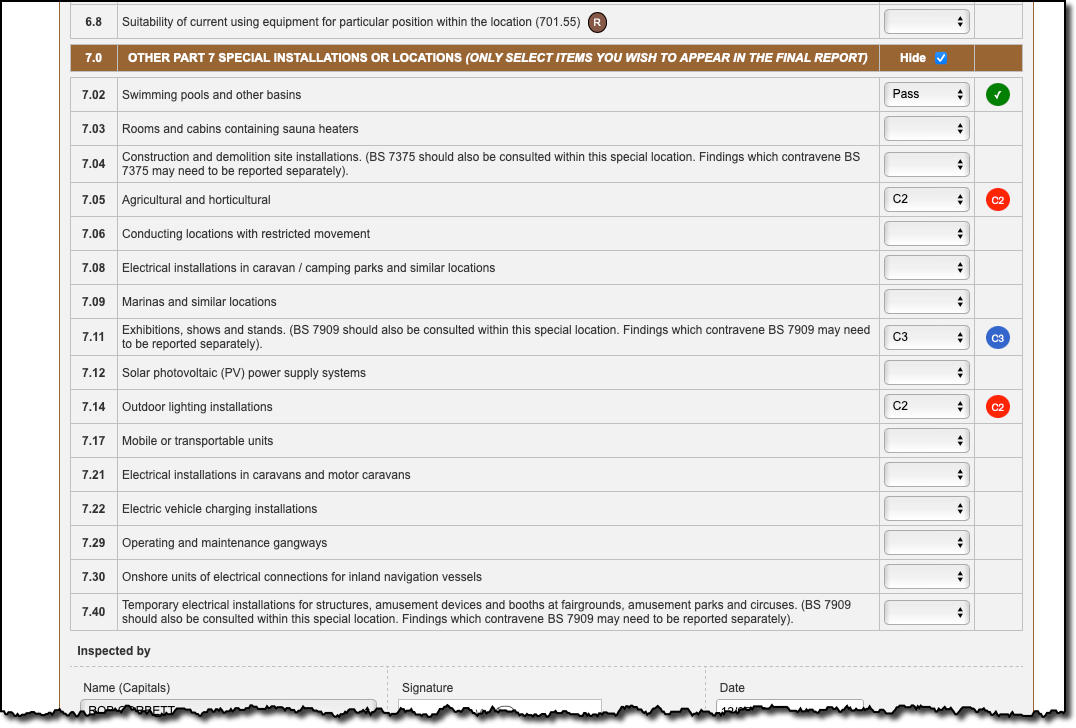

The next image shows the available sections:

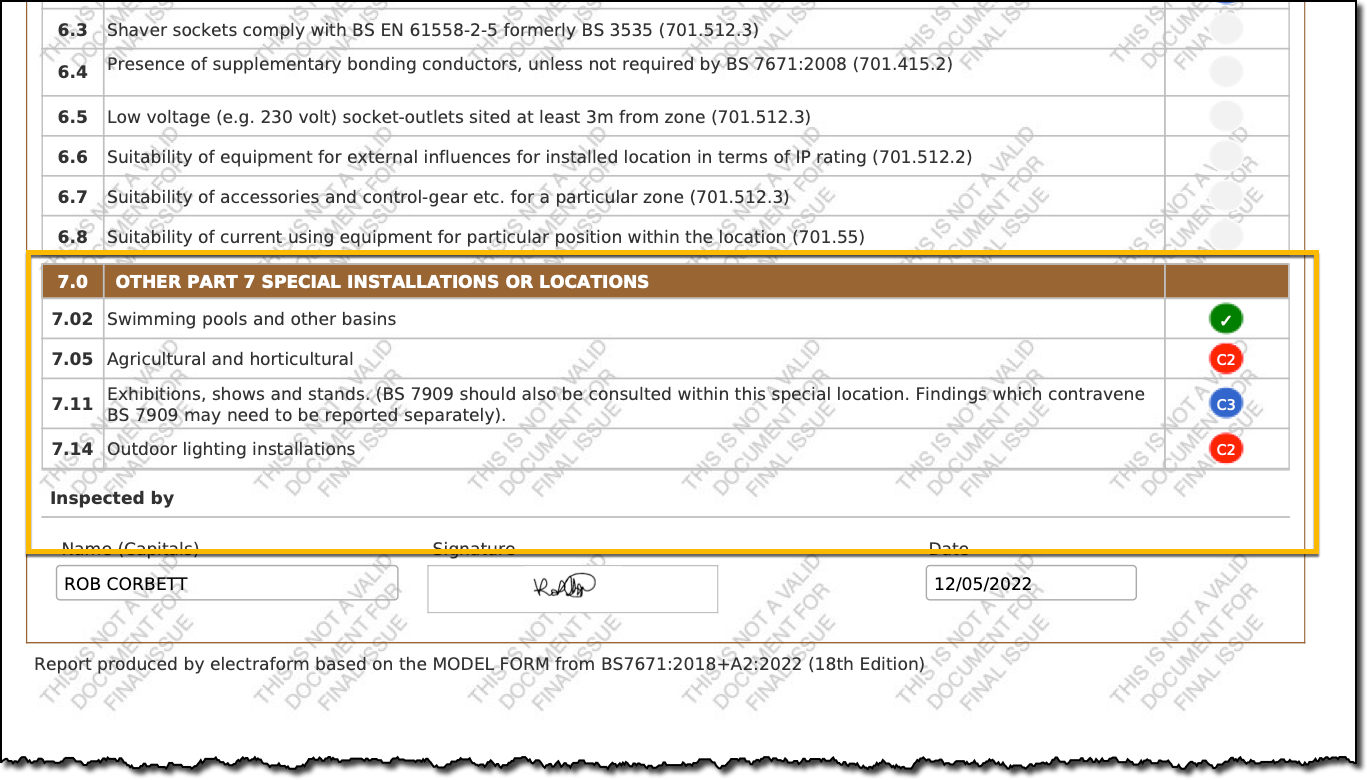

NOTE: Only items selected will appear in the final PDF there is no need to write N/A in sections that do not apply to the report
Boards and circuits

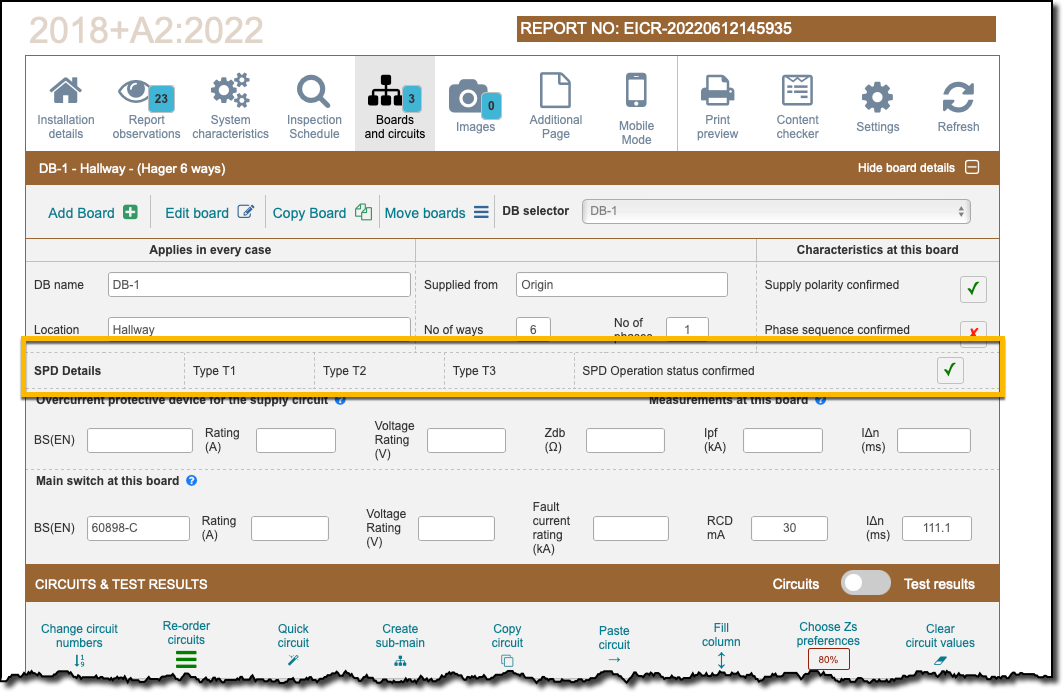

A new section relating to SPDs has been included:
NOTE: Not all SPDs have a visible functionality indication
RCD testing
The requirement to test at 5In is no longer available as per this amendment
Updating to Amendment 2
If you have created an EICR to Amendment 1 and want to upgrade it to Amendment 2 follow these instructions:
- Open the Report
- Click the Settings button
- Open the Update to 2018+A2:2022 button and click the update button
This can also be reversed by following the same instructions and clicking Revert to 2018+A1:2020
