Including RCD types in a circuit

RCD's exist in various different forms and react differently depending on the presence of DC components or different frequencies.

The following RCD's are available with the respective symbols and the designer or installer is required to select the appropriate device for the specific application:



How to include this option for all future certificates

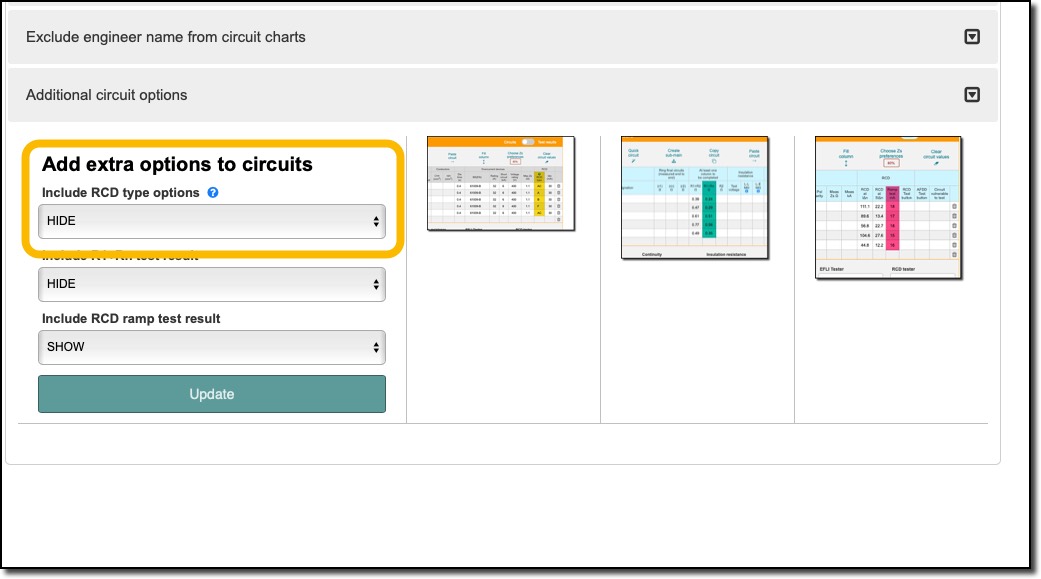

Log in to the Admin area, and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the RCD types and select SHOW. This is a global setting and will effect all certificates created from now on. The setting can be turned on and off in each individual certificate (see next section).


Existing certificates and reports will NOT be affected.

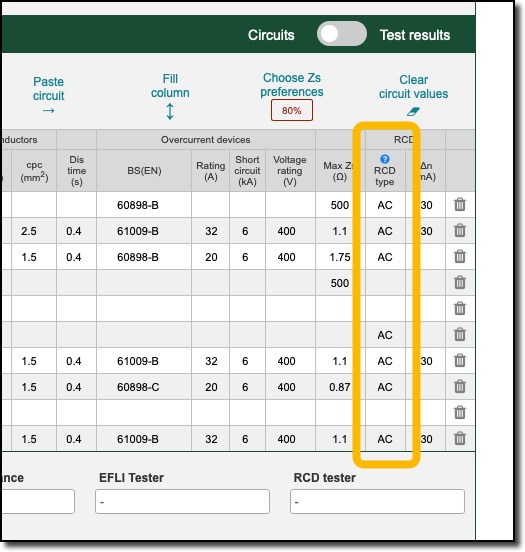

The additional RCD types column will now be available as shown below.



How to include this option for an existing certificate

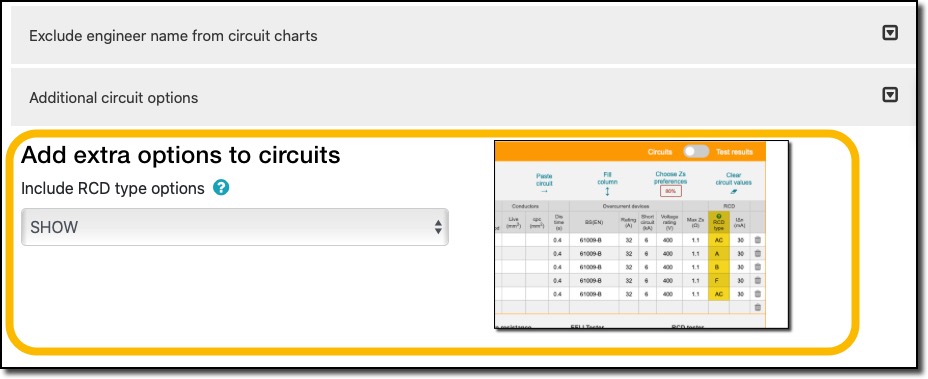

Open the certificate and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the RCD types, select SHOW, then click the UPDATE button.



This certificate will now display the RCD type column for all boards.






Include R1 + Rn for all future certificates

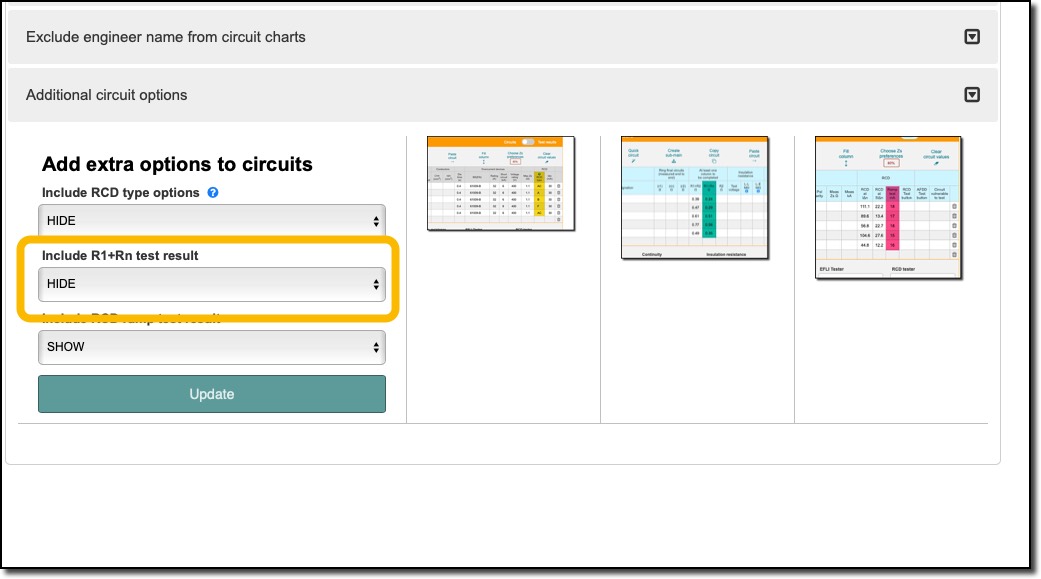

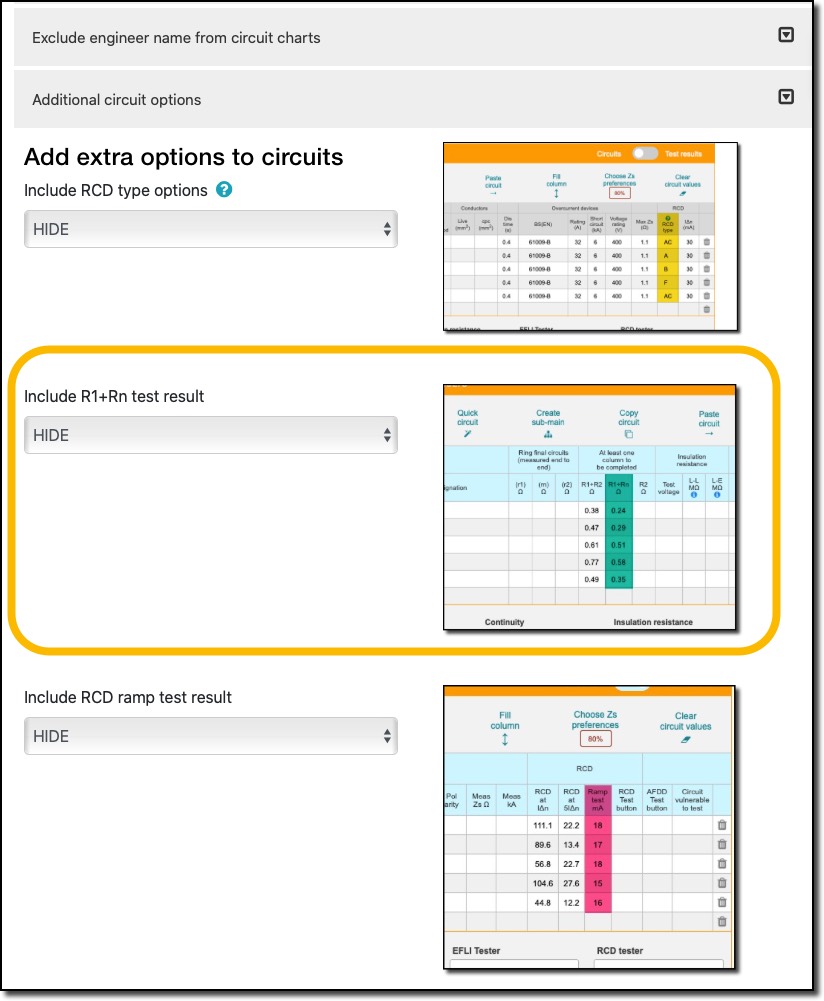

Log in to the Admin area, and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the Include R1+Rn test result and select SHOW. This is a global setting and will effect all certificates created from now on. The setting can be turned on and off in each individual certificate (see next section).


Existing certificates and reports will NOT be affected.

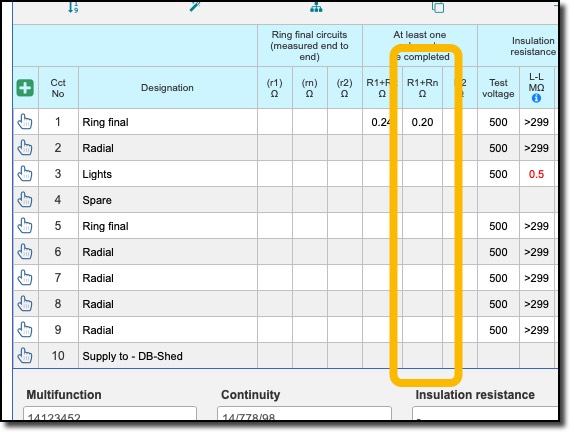

The additional R1+Rn test result column will now be available as shown below.



How to include this option for an existing certificate

Open the certificate or report and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the Include R1+Rn test result option, select SHOW, then click the UPDATE button.





How to include RCD Ramp test for all future certificates

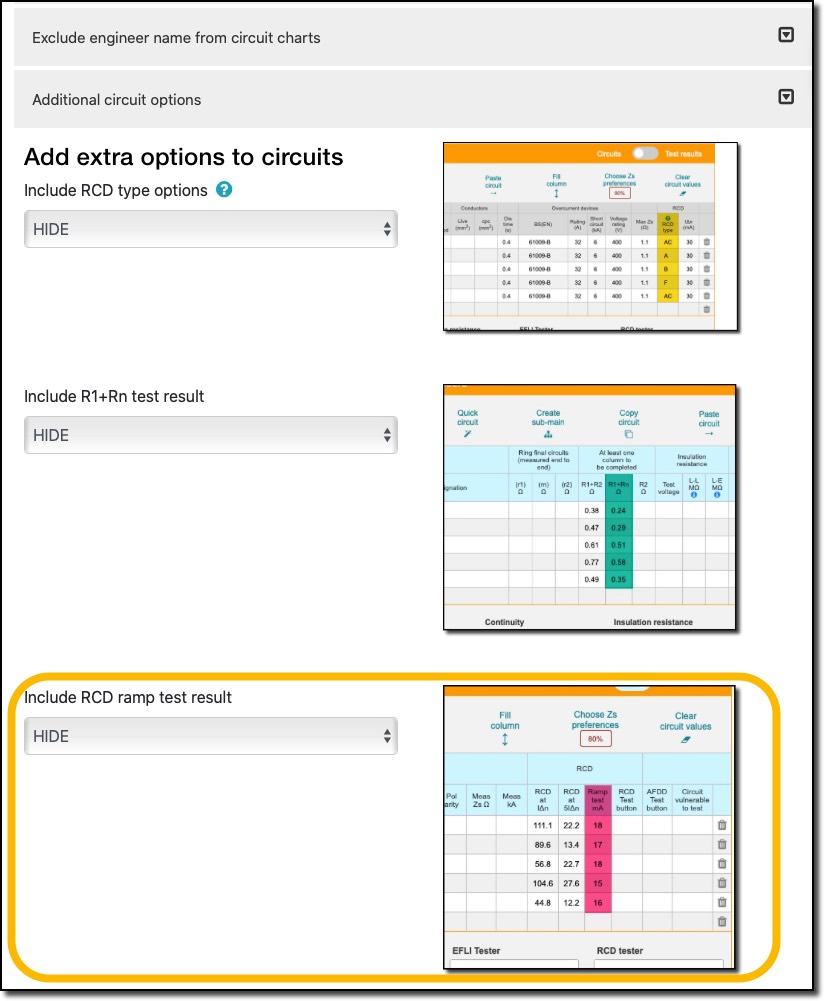

Log in to the Admin area, and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the Include RCD Ramp test result and select SHOW. This is a global setting and will effect all certificates and reports created from now on. The setting can be turned on and off in each individual certificate (see next section).

Existing certificates and reports will NOT be affected.

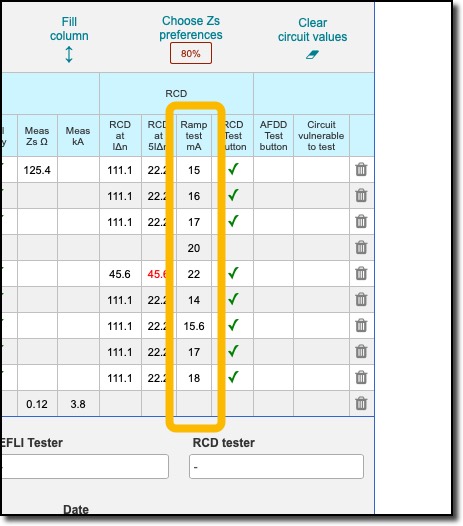

The additional RCD Ramp test result column will now be available as shown below.



How to include this option for an existing certificate

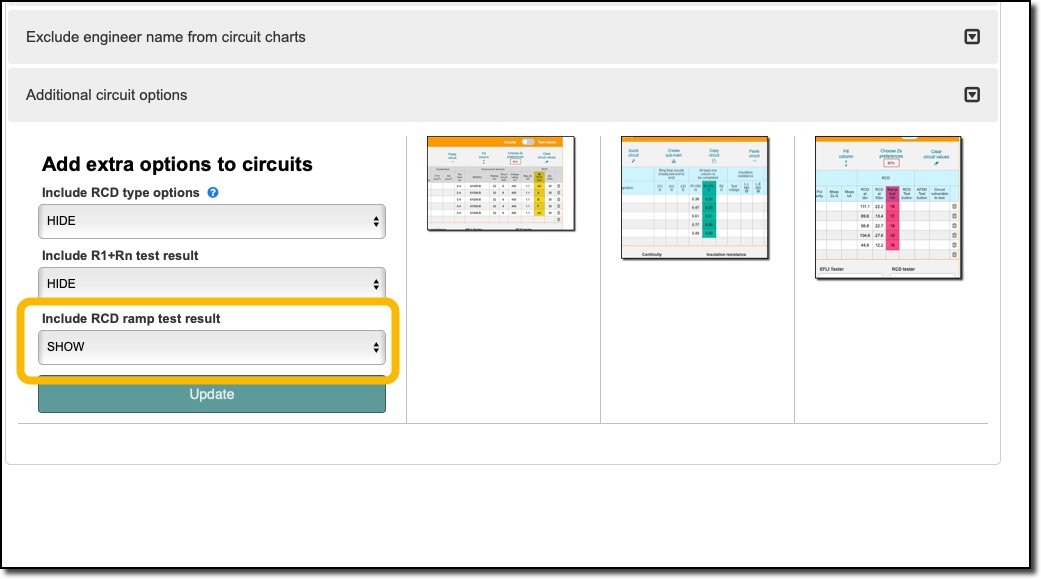

Open the certificate or report and click Settings. Then scroll down to the Additional Circuit Options section and open it.

Click the dropdown box for the Include RCD Ramp test result option, select SHOW, then click the UPDATE button.
